Specifications and Features
CUBICON MX-SS range stainless steel wall mounting enclosures are renowned for its build quality, aesthetics and functionality. They are designed to protect the equipment in extreme wet, humid, and corrosive atmosphere.
Made from 1.2mm, 1.5mm SS 304, 316, 316L. Fully welded mono-block construction, IP66 rating. Right hinged is the default position for all these single door enclosures. Door earthed to cabinet via earth studs. Polyurethane door seal/gasket. 2mm GI mounting plate as a standard for all enclosures. Folded gutter to ensure effective door seal. Doors are fitted with concealed hinges and double bit quarter turn locks.

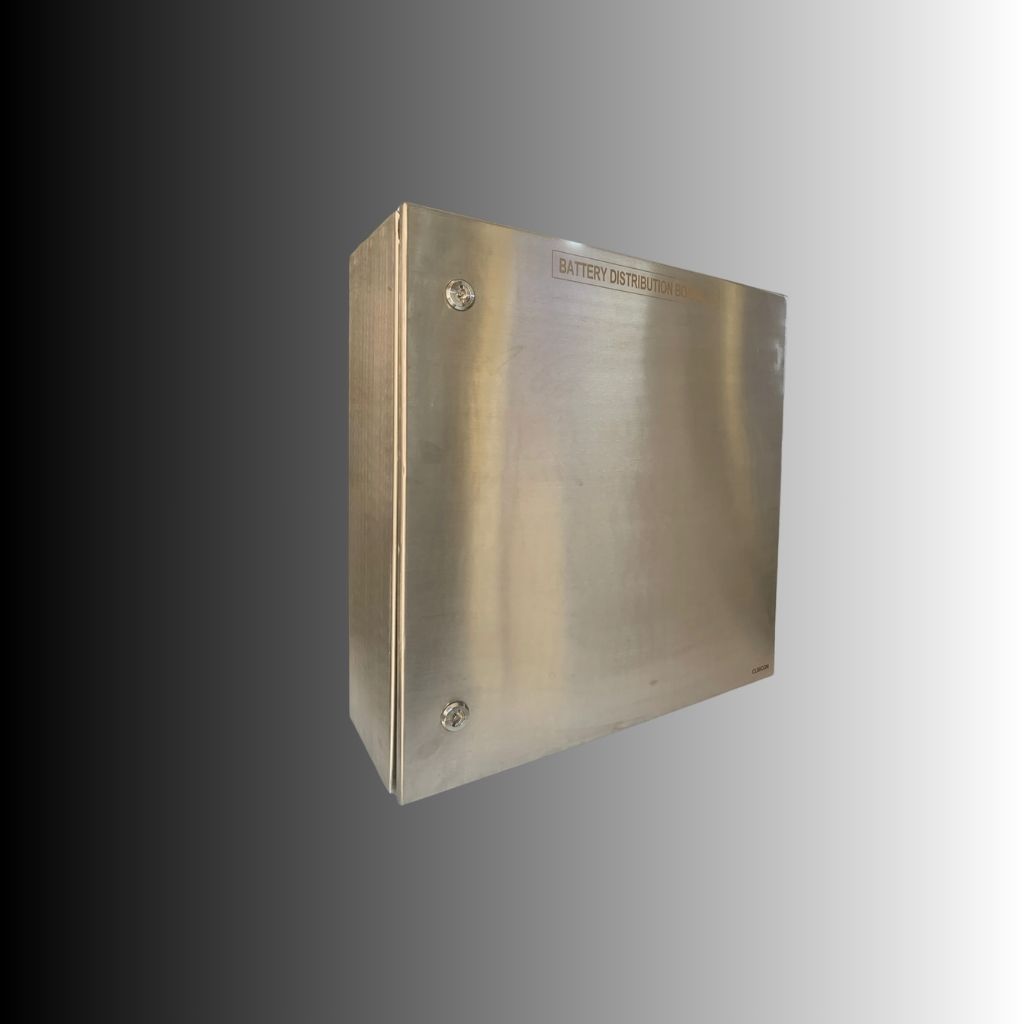

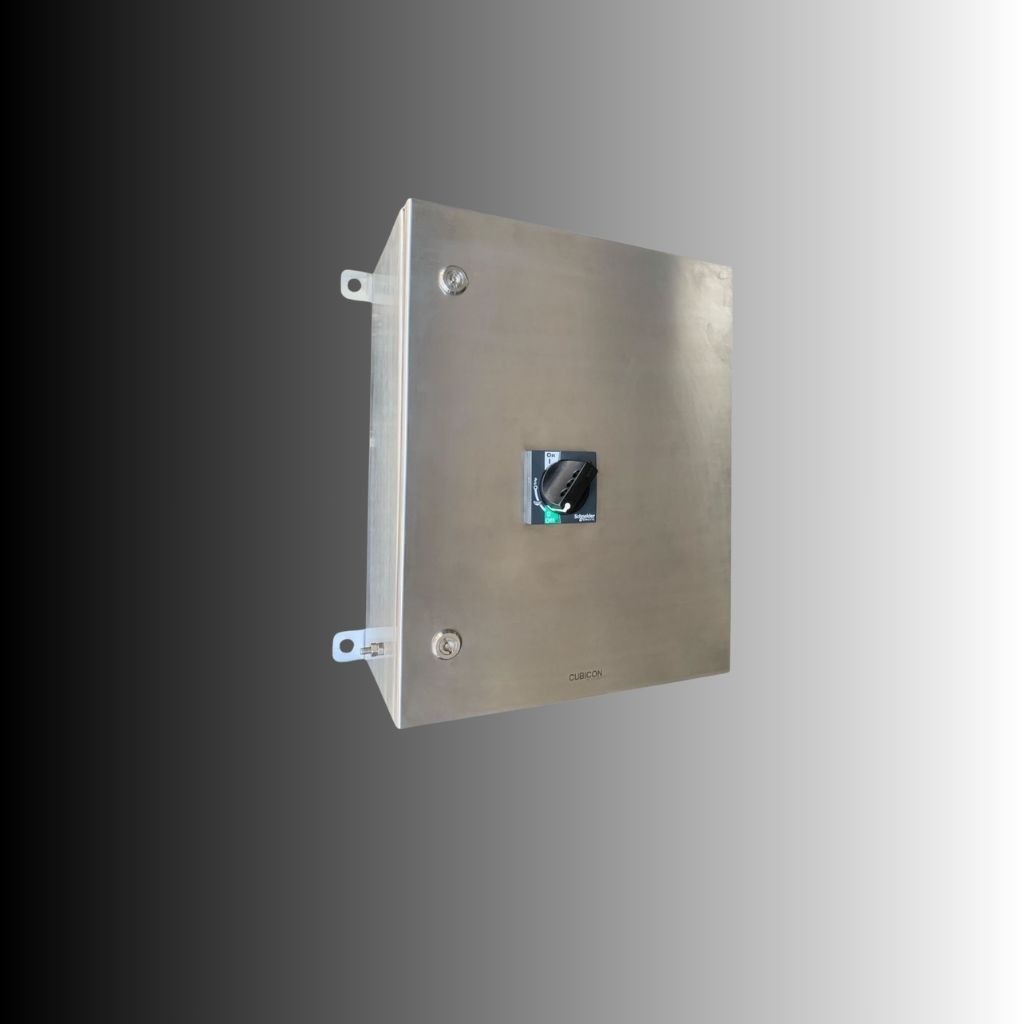

Single Door Enclosures
Single Door Enclosures are compact in size and its maximum width is 800mm and 1200mm in height. They come with two double bit quarter turn locks.
Surface finish could be Matt, Mirror or Powder coated.
Sheet thickness shall be 1.2mm to 1.5mm.

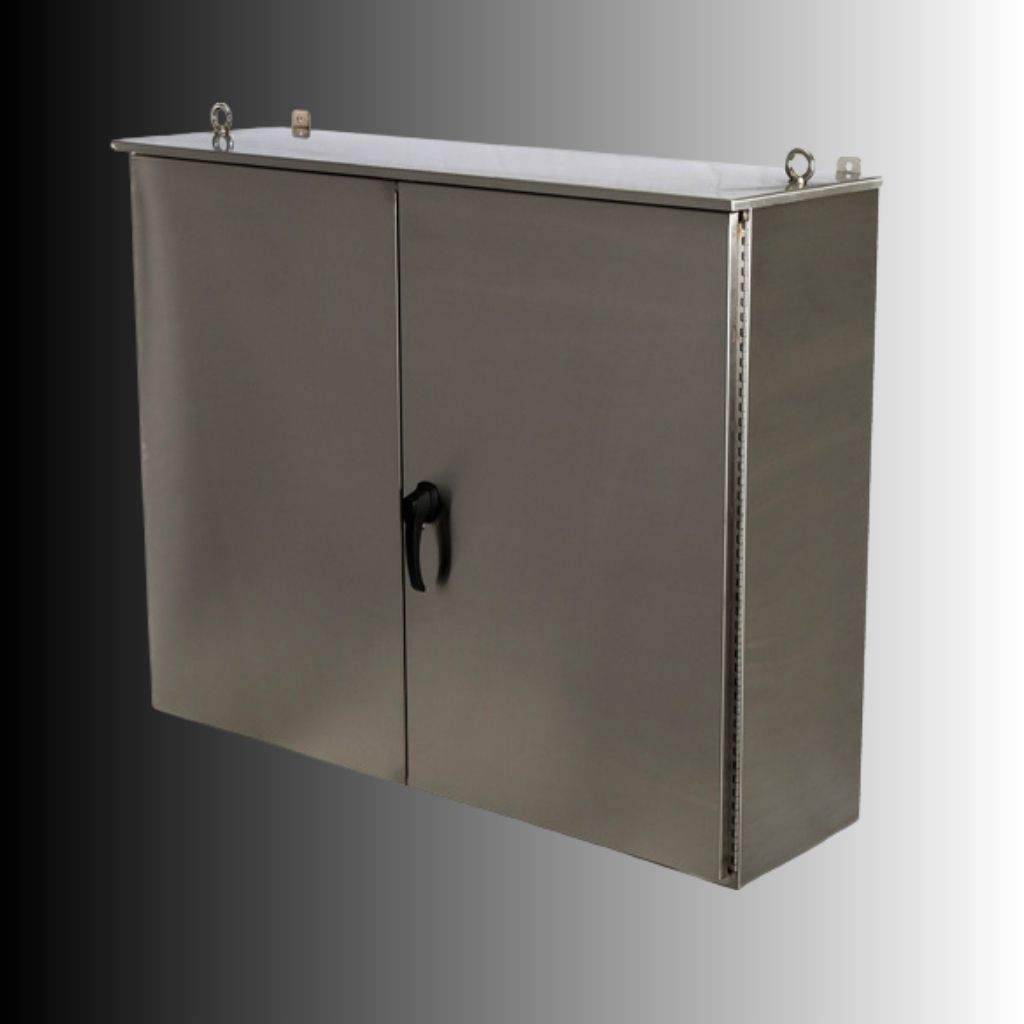

Double Door Enclosures
Double door enclosures are usually come with a width of 800mm and typically upto 1200mm. These comes with two double bit quarter turn locks or a single three point lock.
Surface finish could be Matt, Mirror or Powder coated.
Sheet thickness shalle be 1.5mm to 2.0mm
